Κίνα Ρόλος στα μπουκάλια αρώματος κατασκευαστής

fully automatic injection blow machine

Λεπτομέρειες:
Τόπος καταγωγής: Jiangsu, Κίνα (Ηπειρωτική)
Μάρκα: AMAN
Πιστοποίηση: CE
Αριθμό μοντέλου: AMB35
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1 Ρυθμίστε / Σετ
Τιμή: US $30,000-50,000 / Sets
Συσκευασία λεπτομέρειες: Πρότυπο εξαγωγής συσκευασίας
Δυνατότητα προσφοράς: 30 Σετ / Σκηνικά ανά Μήνα

Λεπτομερής ενημέρωση

Κατάσταση: Νέα εφαρμογή: μπουκάλι
Πλαστικό επεξεργασμένο: PE, PP Τύπος σχήματος χτυπήματος: σχήμα χτυπήματος εγχύσεων
Αυτόματη: Ναί Τάση: Customerized
Δύναμη (W): 17,8 KW Διάσταση (L*W*H): 3100*1100*2300 χιλ.
Βάρος: 2.5 τ Δύναμη κύριων μηχανών: 15 KW
Ηλεκτρικό τμήμα ελέγχου θέρμανσης: 3 qty Μέγιστη θεωρητική ικανότητα εγχύσεων: 158 cm3
Χρόνος κύκλων εκφόρτωσης: 8 s Πίεση του συστήματος συμπιεσμένου αέρα: 1.2 MPA
Δύναμη θέρμανσης φορμών: 2.8 KW Περιστροφική ταχύτητα του μίσχου βιδών: 10--180 περιστροφές/λεπτό
Πλαστικοποίηση της ικανότητας: 12 g/s Εγγύηση: 1 έτος
Υπηρεσία μεταπωλήσεων παρεχόμενη: Υπερπόντιο κέντρο υπηρεσιών διαθέσιμο Θύρα: Κίνα λιμάνι
Υψηλό φως:

υγρή μηχανή πλήρωσης

,

μηχανή πλήρωσης μπουκαλιών

Περιγραφή προϊόντων

Injection Blow Molding Machine



Product Description

 fully automatic injection blow machine 0

Injection blow molding machine Features

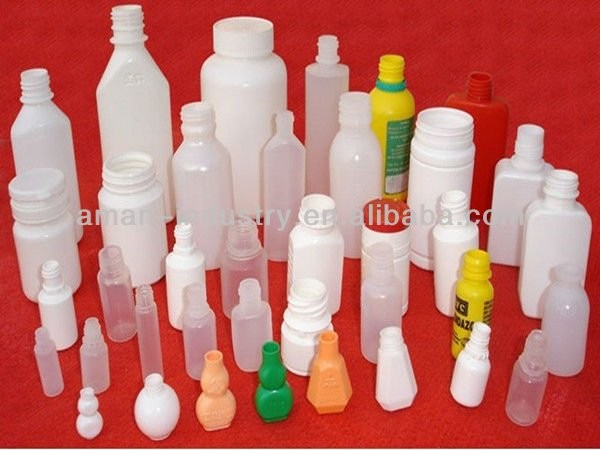

  1. Suitable bottle size: 3ml-1000ml
  2. Material: PP/PE/PS.
  3. High speed: cycle time control 9-15sec. on our injection blow molding machine.

Injection blow modling machine Advantage



1. The bottle blown by this machine has perfect neck formation. Dimension tolerance control is 0.2mm only. the neck is very smooth, no flash can be seen.

2. The bottle bottom is clean, only injection point can be seen, bottle weight tolerance is onl 0.1grm.

3. The bottle parting line is untouchable

4. Wall thickness is evenly distributed

5. No wastage at all

6. Production is high (the machine can control cycle time from 9-15sec.)

7. The bottle produced by this machine is suitable to pharmaceutical bottle, no human touch.



Injection blow molding machine Technical Parameters



NO.

ITEM

UNIT

DATE

1

Dia. of screw

MM

40

2

Max. retical capacity

Cm3

220

3

Total power for cylinder-heating

Kw

6.5

4

Clamping force of injection mold

Kn

350

5

Opening stroke

Mm

120

6

Clamping force of blow mold

Kn

30

7

Max. plate size of die (L*W)

Mm

300*200

8

Min. die thickness

Mm

180

9

Motor power

Kw

15

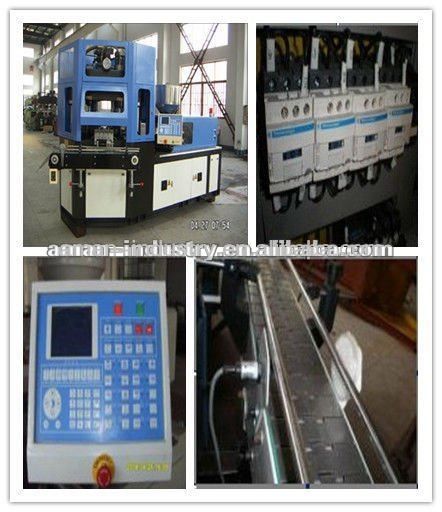

Injection blow molding machine Parts pictures



fully automatic injection blow machine 2



Injection blow molding machine Main Parts



Parts Name

Brand Name

hydraulic vale, electromagnetism valve, proportional valve.

YUKEN

air valve and air pipe connector.

FESTO

hydraulic hose

ISR

sealing Parts

SEALTECH

hydrolic motor

INTERMOT

microcomoputer controller

TAIWAN

contactor and relay.

SCHNEIDER

short-circuit equipt

GMERLIN GERIN

air tube

CAMOZZI

conveyer motor

TAIWAN

main motor

BEIDE

proximity switch.

TAIWAN



Packaging & Shipping

 fully automatic injection blow machine 4



Company Information

 fully automatic injection blow machine 6



FAQ



Q1:What’s your guarantee or the warranty of the quality if we buy your machines?

A1:We offer you high quality machines with high quality after-service. Also we have one year warranty of the spare parts, free of charge.



Q2:How can I install my machine when it arrives?

A2:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines. also we will send you a machine manual for your reference.



Q3:How about the spare parts?

A3: we will offer you a spare parts list for your reference
